Product Description

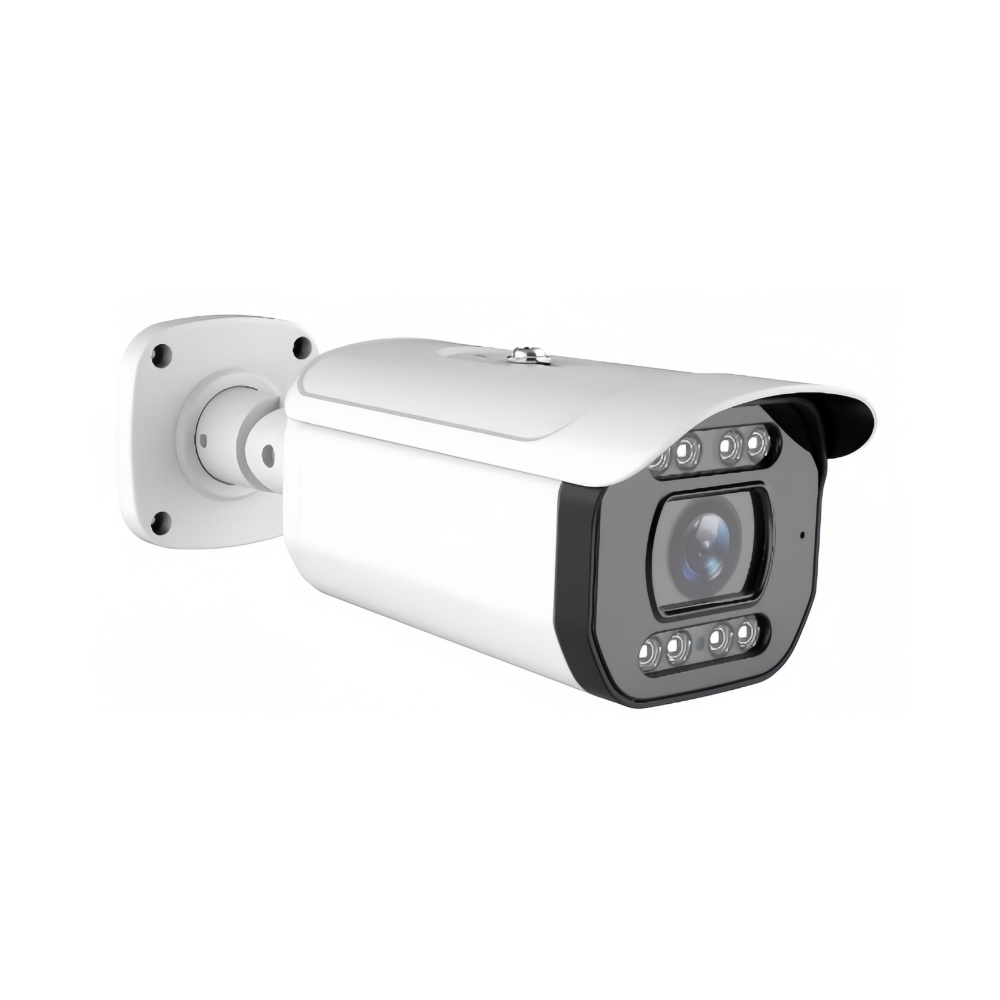

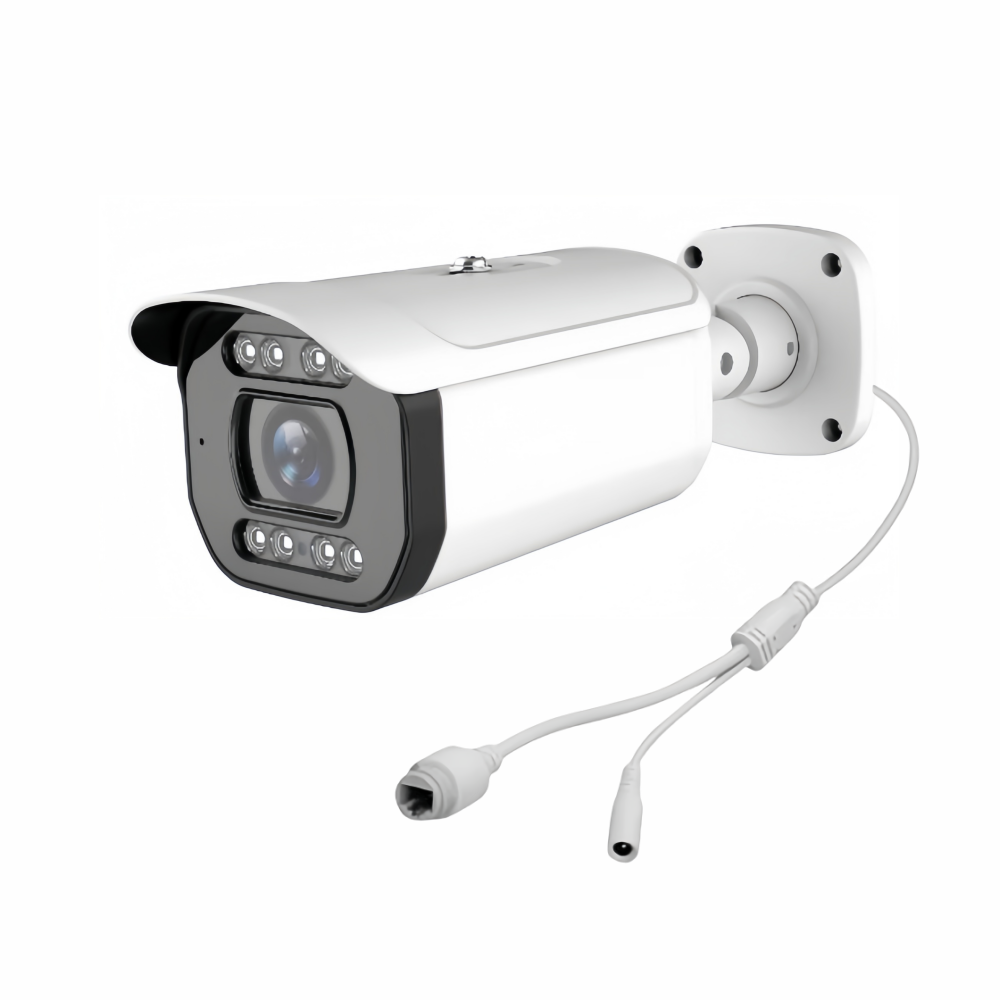

Full HD 3MP Waterproof/Weatherproof Outdoor/Indoor Bullet POE IP Cameras
Embedded RTOS , Linux operating system, With RTSP ,RTMP ,MJPEG ;
MSTAR Chipset, CMOS, Sony/IMX307 Sensor;
8pcs or 4pcs array LEDs ; IR-distance: 20M-40M;
Night vision: Support three mode (include:AWB , full color night vision,dual light source );
The lens: Full HD 3MP fixed lens: 1.7mm, 2.8mm, 4mm ,6mm,8mm optional;
Support : AF/Motorized zoom lens:4X Zoom
Complete Compatible: 4CH 8CH 16CH,36CH 64CH,128CH(POE) NVRs ;
Optional functions: TF/SD, IO/Alarm, ;Audio(1way audio&2 way audio optional );
AI Feature: Human&Vehicle detection.
Product Characteristics
Human Detection
AI smart humanoid detect and humanoid tracking.
Vehicle Detection
Quickly find vehicle targets and auto tracking it.
Modify Light Mode
Support three mode: AWB,full color night vision and dual light source.
Cloud Storage
Videolink app support ISO, Android and computer.
Auto Alarm Mode
The camera support I/O alarm.
High Definition Images
3MP 2304*1296 with HD resolution.
Zoom Capabilities
Motorized zoom lens:4X optical zoom.
Power Over Ethernet
The camera support POE optional function.
Product Parameters
Specification | XZ-8AA12-MJ10 |
Structure | MSTAR SSC335 + 1/2.8″ Progressive Scan CMOS sensor IMX307 |
SNR | ≥ 50 dB |
HDR(WDR) | Support |
Privacy mask | Support 4ch Privacy masking area |
Video | Support OSD, BLC, HLC, DWDR, 3D NR; Brightness/Contrast/Saturation/Sharpness Adjustable
Support Motion Detection Alarm; Area detection humanoid alarm, Support night vision alarm light source linkage |
Lens | standard configuration 3.6mm; 2.8mm,6mm,8mm Optional |
Zoom | Motorized zoom lens: 4X Zoom |
Lens type&FOV | 2.8 mm, horizontal FOV 129°, vertical FOV 50°;
3.6 mm, horizontal FOV 89°, vertical FOV 38°; 6 mm, horizontal FOV 45°, vertical FOV 24°; 8 mm, horizontal FOV 33°, vertical FOV 18°; |
IR Led | 8pcs IR Led, IR distance 20-40M |
Frequency | 50Hz/60Hz |
Audio | Optional Built-in MIC and 2W SPK; audio encoding G.711/G.711A/AAC ,
Adding audio can realize two-way voice intercom and sound alarm; |
Video Coded Format | H.264 /H265/H265+ |
Image Resolution | Main stream: 3MP (2304*1296), 1-25fps; 2MP(1920*1080), 1MP(1280*720), 1-30fps |
Sub-stream: D1, VGA, 640*360, 480*360, CIF; 1-30fps | |
Video Compression Rate | 500Kbps-3Mbps continuously adjustable, support CBR/VBR |
TF | Optional MAX:128G |
IO Alarm | Optional |
Network Port | 10/100M self-adapt Ethernet port, lighting protection design |
Protocol | Support HTTP/RTSP/DHCP/NTP/ONVIF/P2P/FTP/SMTP/HIK,etc. RTMP Optional |
Phone Clients | Support iPhone, Android |
Browser | Support IE10 and above (equipment embedded Web Server)browser, |
Business functions | support unit client software,support CMS platform system application |
Feature | support day/night (support IR-CUT), support LDR signal linkage |
General Parameters | DC12V, 5W Max, IP66, Optional POE |
Working temperature | -30°C~60°C |
