Product Description
1.Raw material branding
3.0Megapixel MSTAR Chipset,Ultra low illumination COMS Wifi Cameras,

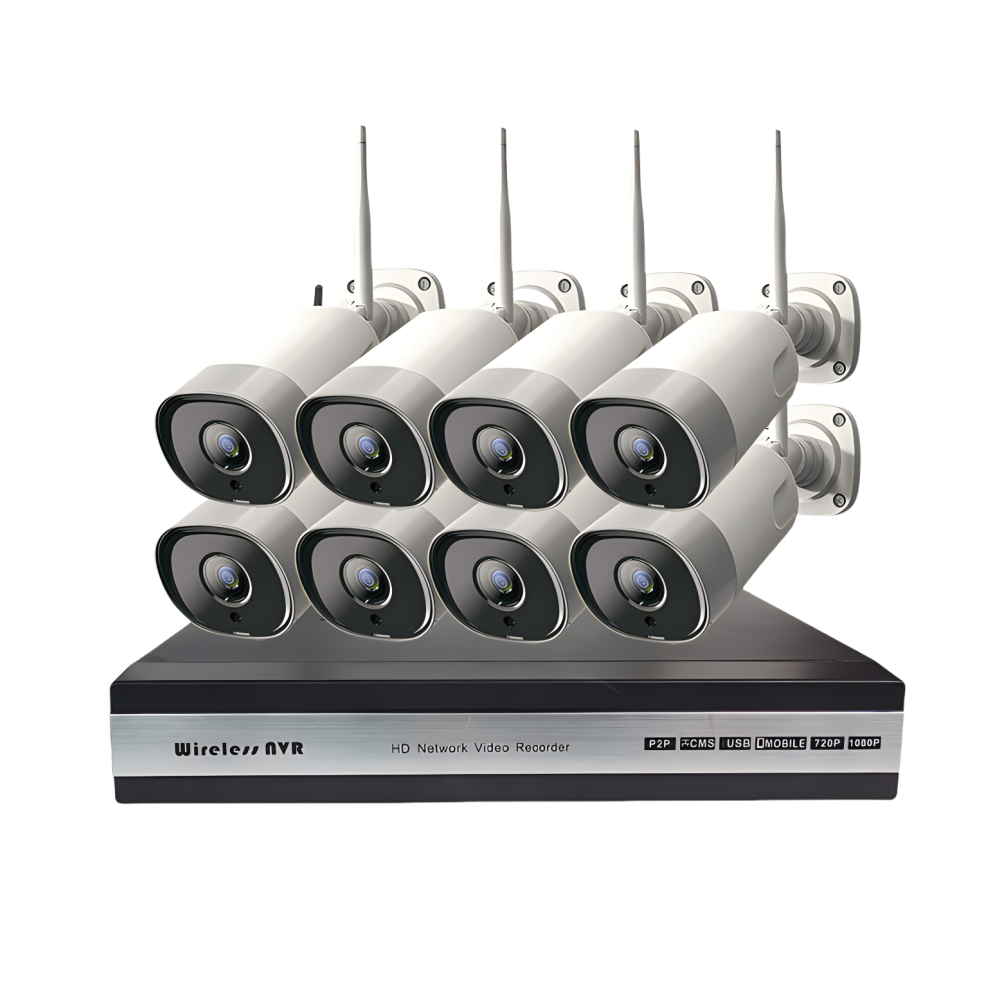

Mini Style, Outdoor/Indoor Waterproof (IP66 standard) Bullet Wifi Cameras With Wifi NVR Kits
AI feature: Human detection; motion detection;
True Plug&play CCTV Kits 4CH,8CH, 16CH Optional System ;
Wifi Cameras with HD Videos it’s Metal housing, And Support Wall &Ceiling mounting;
2. 24/7 Recording and Monitoring
Night vision support three mode setting: Auto white balance, Full color night vision, Dual light Source;
3.Local & Cloud Storage& And support customize more functions
This System can be store video right on the device or cloud;
Customize can be support : Zoom , audio , IO/alarm, Field of View, IR distance, Logo etc.
Product Parameters
Wireless NVR | ||||
Model number | XZ-KN6108W-AO8/4 | XZ-KN6108W-AO8/8 | ||
Video &Audio Input | Network audio/video input | 4CH | 8CH | |
Video & audio output | HDMI output | 1 channel, resolution: 1024×768, 1280×1024 , 1366×768, 1440×900, 1920x1080p, 2K, Support audio output | ||
VGA output | 1 channel, resolution: 1024×768, 1280×1024, 1366×768, 1440×900, 1920x1080p | |||
Video Coding Format | H.264,H.265 | |||
Audio Coding Format | G711A | |||
Video and audio code parameter | Video resolution | 5MP/3MP/1080P/720P | ||
Synchronous playback | 3MP @ 4CH
5MP @ 1CH |
|||
Video Management | Video recording mode | Scheduled recording, motion detection recording, alarm recording | ||
Playback Mode | Regular playback, event playback | |||
Backup method | USB backup | |||
Hard Drive | Type | 1×SATA interface, support hard disks with max. 6TB | ||
External Interface | Network Interface | 1×RJ 45 10M/100M adaptive Ethernet port | ||
1×built-in wireless network card | ||||
Antenna interface | 2×2.4G, 5DBi integrated antenna | |||
USB interface | 1×USB2.0 Interface | |||
Audio Interface | 1 x 3.5 mm headphone port | |||
power supply | DC 12V2A | |||
Wireless IPC | ||||
Pixel | 5MP | 3MP | 2MP | 1MP |
Resolution | 2560×1920 4:3 | 2304×1296 4:3 | 1920×1080 4:3 | 1280×720 4:3 |
Lenses | 4 mm | 4 mm | 4 mm | 4 mm |
Video compression format | H.264,H.265 | H.264,H.265 | H.264,H.265 | H.264 |
Stream parameters | Main stream: 2560×1920@15 fps
Sub-stream: 702×576@15 fps |
Main stream: 2304×1296@15 fps
Sub-stream: 640×360@15 fps |
Main stream:
1920×1080@15 fps sub-stream: 640×360@15 fps |
Main stream:
1280×720@15 fps Sub-stream: 640×360@15 fps |
Infrared distance | 30 meters | 30 meters | 30 meters | 30 meters |
interface | 1 x RJ 45 10M/100M adaptive Ethernet port | 1 x RJ 45 10M/100M adaptive Ethernet port | 1 x RJ 45 10M/100M adaptive Ethernet port | 1 x RJ 45 10M/100M adaptive Ethernet port |
1 x SMA interface, 5DBi stick antenna Line, 802.11b/g/n/protocol | 1 x SMA interface, 3DBi stick antenna Line, 802.11b/g/n/protocol | 1x SMA interface, 3DBi sticks Antenna line, 802.11b/g/n/ protocol | 1 x SMA interface, 3DBi stick antenna
Line, 802.11b/g/n/ protocol |
|
Power Supply | DC 12V1A | DC 12V1A | DC 12V1A | DC 12V1A |
You May Also Like
Product Advantages
years experience in CCTV industry, has our own R&D team for hardware and software, Non-dust workshop, strict QC process, aging-test, good after-sale services and technical support. At our here , for the products, that we not only have front end camera equipment , but also have back end storage NVRs, DVRs equipment; So , for us , to providing the whole CCTV system to our customers all are safe : include the hard firmware &software, If you choose us to cooperation, the money also is safe!
