Product Description

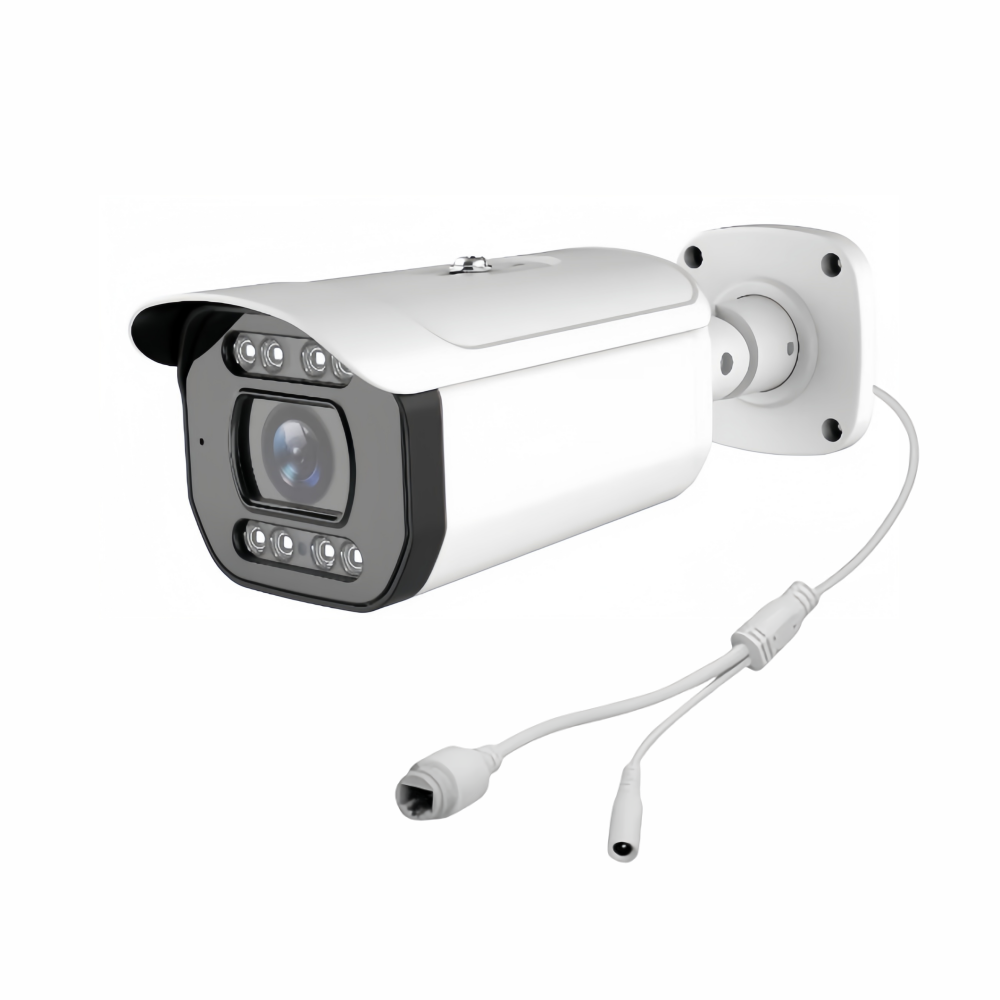

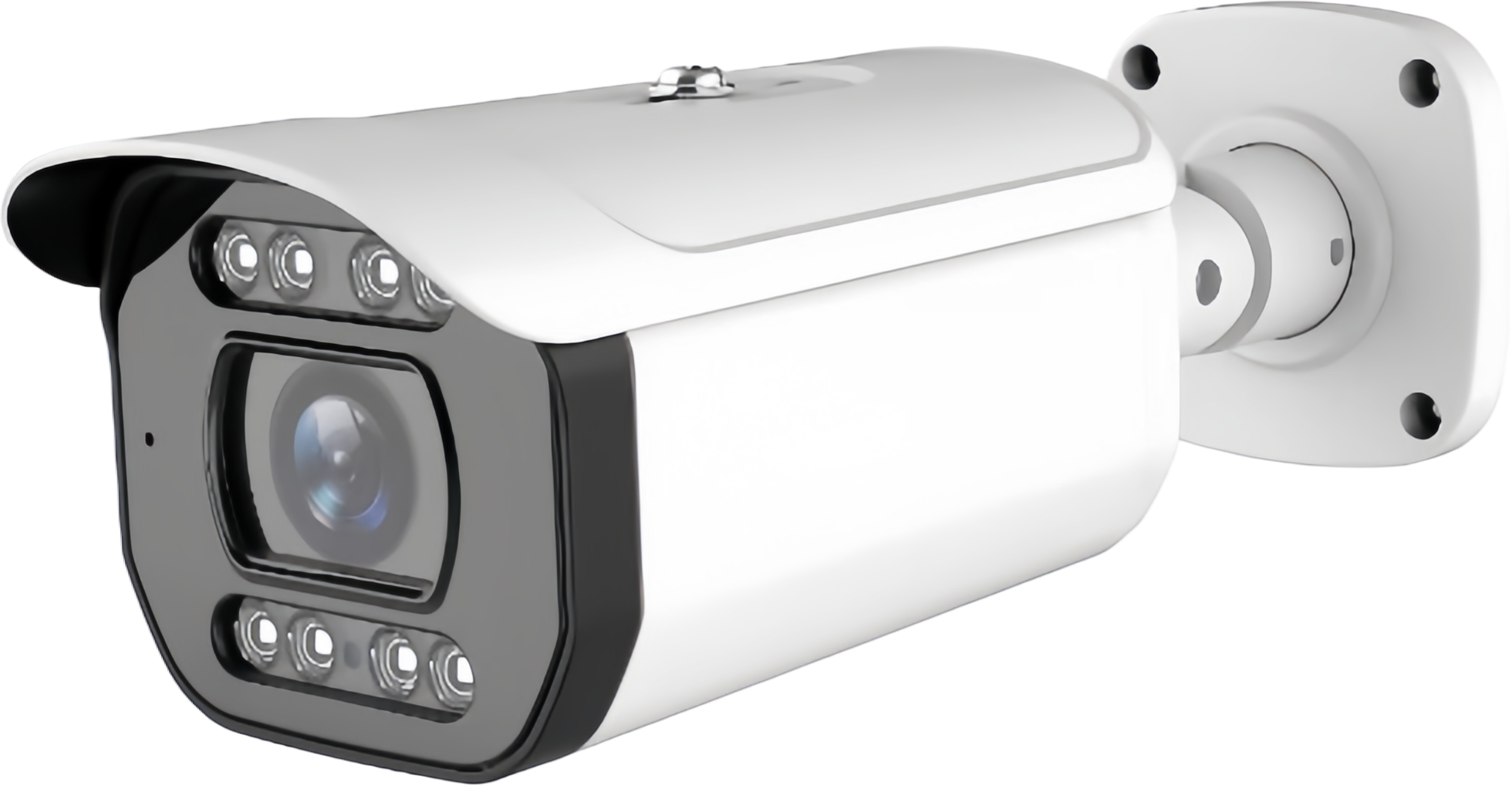

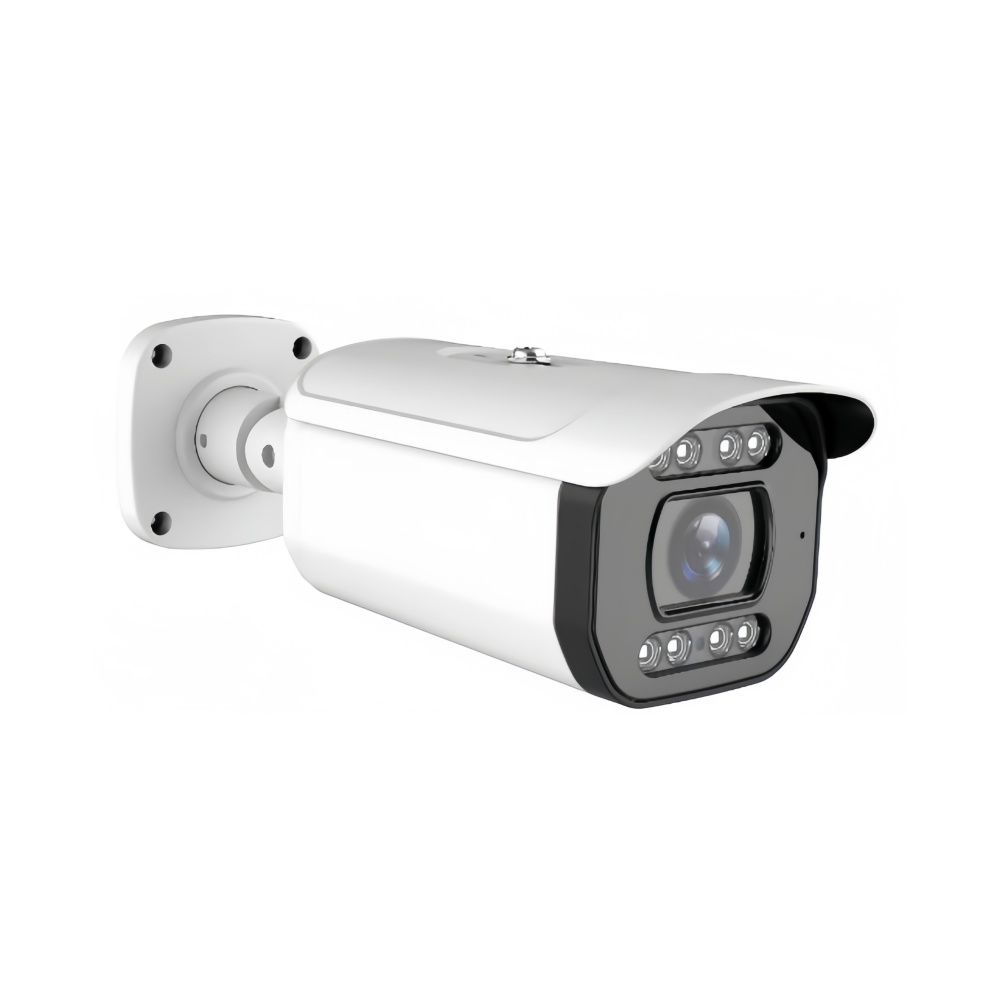

Ultra HD 12MP waterproof/weatherproof outdoor/indoor bullet camera
Embedded RTOS , Linux operating system, With RTSP, MJPEG ;
Fram rate: 12MP:25fp ( support customize 30fps),
MSTAR Chipset, CMOS, Sony/IMX577sensor; Full metal ;
8pcs array LEDs, IR-distance: 20M-50M
Night vision effect: Support three mode (include: AWB, full color night vision, dual light source )
Lens: 12MP HD fixed lens: 3.2mm,4mm,6mm,8mm,12mm optional
Support : AF/Motorized zoom lens: 4X Zoom;
Compatible: 4K 16CH,36CH 64CH,128CH (POE) NVRs
Optional functions: POE, TF/SD,RS232/RS485/ IO/Alarm; Audio (1 way audio and 2 way audio optional)
AI features: Human&Vehicle detection; 4 arming modes of cross-border detection; Entering area ,Leaving area,Area intrusion,Classify detection and deploy motor vehicles , non-motor vehicles ,and pedestrians.
Product Characteristics
Human Detection
AI smart humanoid detect and humanoid tracking.
Vehicle Detection
Quickly find vehicle targets and auto tracking it.
Modify Light Mode
Support three mode (AWB,full color night vision and dual light source)
Cloud Storage
Videolink app support ISO, Android and table computer.
Auto Alarm Mode
Entering area, Leaving area, Area intrusion, Classify detection.
High Definition Image
4K 12MP 4000×3000 with ultra HD resolution.
Zoom Capabilities
Motorized zoom lens: 4X optical zoom
Power Over Ethernet
The camera support POE optional function.
Product Parameters
Specification | XZ-8AA12-MH |
Structure | SSC359 ARM Cortex0A53 1.2GHz + 12MP 1/2.3″ CMOS IMX577 |
HDR(WDR) | Support |
Privacy mask | Support 4ch Privacy masking area |
VIDEO | Support OSD,BLC,HLC,DWDR,3D NR;Brightness/Contrast/Saturation/Sharpness Adjustable
Support Motion Detection Alarm ; Area detection humanoid, car, bicycle, motorcycle alarm,Support night vision alarm light source linkage,Support for video occlusion alarm |
lens | standard configuration 5mm; 3.2mm,8mm Optional |
zoom | Optional 8MP 2.7-13.5mm, 3.6-11mm zoom lens, |
Lens type&FOV | 3.2 mm, horizontal FOV 127°, vertical FOV 79°;
5mm, horizontal FOV 70°, vertical FOV 42°; 8 mm, horizontal FOV 40°, vertical FOV 28°; |
IR Led | 4pcs IR Led,4pcs white light, IR distance 30-40M; |
frequency | 50Hz/60Hz |
AUDIO | Optional Built-in MIC and 2W SPK; audio encoding G.711 ,
Adding audio can realize two-way voice intercom and sound alarm; |
Video Coded Format | H.264 /H265/H265+ |
Image Resolution | Main stream: 25@FPS(4000×3000);30@FPS(3840×2160,3072×2048,2592×1944);60@FPS(2560×1440,2304×1296,1920×1080,); |
Sub-stream:D1 ,VGA,640*360,480*360,CIF;1-25fps | |
Video Compression Rate | 500Kbps-12Mbps continuously adjustable, support CBR/VBR |
TF | Optional MAX:128G |
IO Alarm | Optional |
Network Port | 10/100M self-adapt Ethernet port, lighting protection design |
Protocol | Support HTTP/RTSP/DHCP/NTP/ONVIF/P2P/HIK,etc. |
Phone Clients | Support iPhone、Android |
browser | Support IE10 and above (equipment embedded Web Server)browser, |
Business functions | support unit client software,support CMS platform system application |
Feature | support day/night(support IR-CUT),support LDR signal linkage |
General Parameters | DC12V,6W Max,IP66,Optional POE |
working temperature | -30℃~60℃ |
